This Alkaline Electrolysis Composite Membrane is a proprietary innovation crafted from organic polymers, ceramic powder, and a reinforcing liner. It is widely applied in water electrolysis systems to effectively separate hydrogen and oxygen without blocking the electrolyte. As a technologically advanced product, it serves as a critical component for high-efficiency green hydrogen generation.
Marque :
Rubri

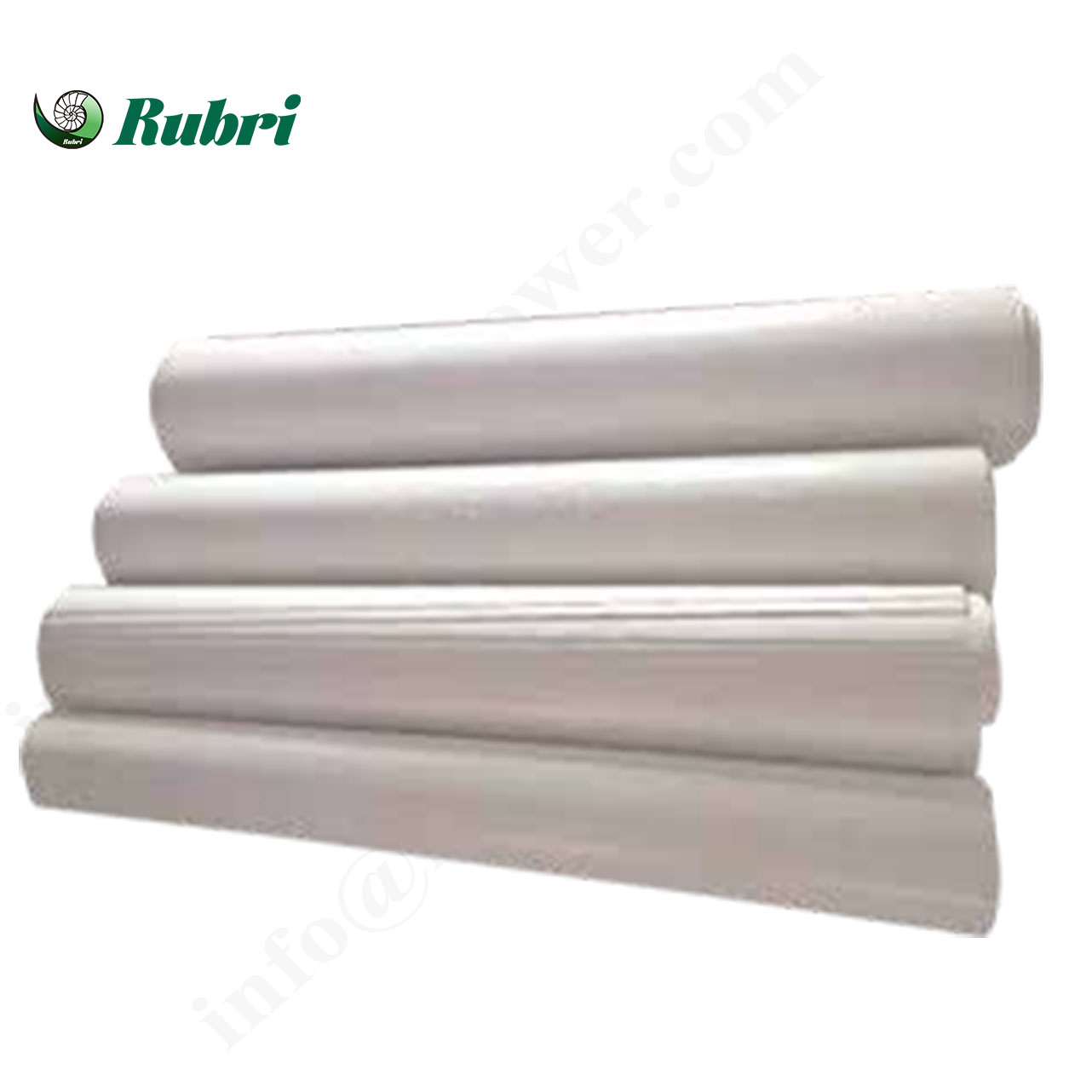

ALKAINE ELECTROLYZED WATER COMPOSITE MEMBRANE
The key material for green hydrogen production

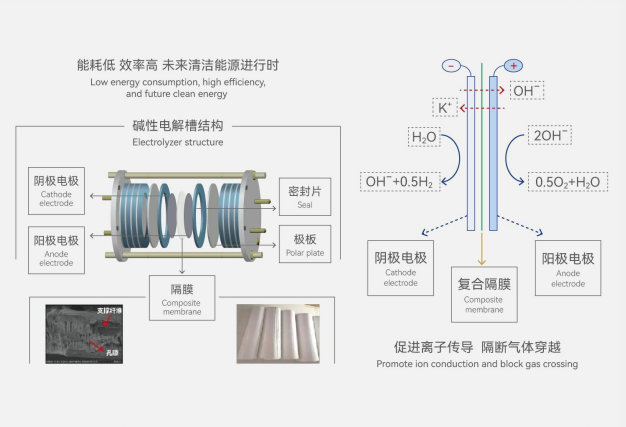

The new composite membrane independently developed by CE is composed of organic polymer, ceramic powder and lining support. Widely used in alkaline electrolysis of water, it can efficiently separate hydrogen and oxygen, and pass the electrolyte. It is a breakthrough and innovative product for the key technology in this field.
Product Specification
Features and advantages
Safe and stable
High purity
Long life
Customizable
The cross-section of composite membrane
The surface of composite membrane
Low ionic resistance, surface resistance ≤0.3 Ω·cm² (30℃, 30mV%KOH)
Long width range up to 2.5 meters, and the size can be customized according to customer needs
Chemically and mechanically stable, and life is more than 7 years
Permanent hydrophilic, strong electrolyte infiltration
Nanoporous structure, porosity ≥60±10%
High bubble point pressure, high operating safety
The purity of hydrogen is greater than 99.7%
In order to better adapt to the development of electrolyzer,who has developed a three - dimensional composite membrane based on the first nature principle, which is more suitable for the pressurized tank structure.
EN SAVOIR PLUS
This Alkaline Electrolysis Composite Membrane is a proprietary innovation crafted from organic polymers, ceramic powder, and a reinforcing liner. It is widely applied in water electrolysis systems to effectively separate hydrogen and oxygen without blocking the electrolyte. As a technologically advanced product, it serves as a critical component for high-efficiency green hydrogen generation.
EN SAVOIR PLUS
La technologie de production d'hydrogène par électrolyse alcaline de l'eau domine le secteur de la production d'hydrogène par électrolyse de l'eau grâce à ses avantages tels que son faible coût, sa longue durée de vie et l'abondance de ses ressources. La membrane PPS, fabriquée à partir de polysulfure de phénylène (PPS), un plastique technique spécialisé haute performance, maintient des performances stables dans des environnements alcalins et à haute température, ce qui la rend idéale pour la production d'hydrogène alcalin.
